Vsdk::Audio::ProducerModule

Base class for Pipeline modules that aquire and dispatch audio buffers (like Producer::File) More...

#include <ProducerModule.hpp>

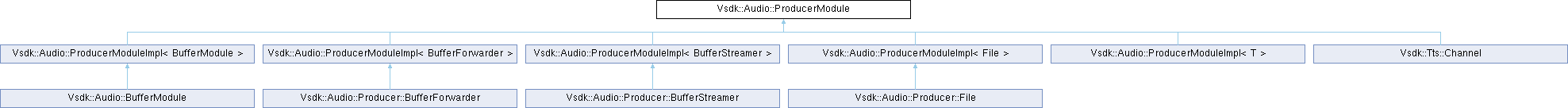

Inheritance diagram for Vsdk::Audio::ProducerModule:

Public Types
enum class	State {   Closed , Opened , Running , Started ,   Paused , Idle }
using	StateChangedCallback = std::function<void(State)>
using	Iterator = Vsdk::Utils::Iterator<decltype(_subscribers)>
	Iterator pointing to a subscriber of this producer.

Public Member Functions
	ProducerModule ()
	ProducerModule (ProducerModule &&)
ProducerModule &	operator= (ProducerModule &&)
virtual	~ProducerModule ()=0
	ProducerModule (ProducerModule const &)=delete
ProducerModule &	operator= (ProducerModule const &)=delete
auto	subscribeFirst (AudioCallback c) -> Iterator
	Subscribes as first in the list of audio buffer receivers for this producer.
auto	subscribeLast (AudioCallback c) -> Iterator
	Subscribes as last in the list of audio buffer receivers for this producer.
void	unsubscribe (Iterator it) noexcept
	Unsubscribes from this producer audio buffer dispatch list.
auto	state () const -> State
bool	isOpened () const
bool	isRunning () const
bool	isStarted () const
bool	isPaused () const
bool	isIdle () const
bool	isClosed () const
void	open ()
	Attempts to open the underlying resource(s) of the producer.
void	run ()
void	start ()
void	pause ()
	Attempts to pause a started producer.
void	resume ()
	Attempts to resume a paused producer.
void	stop ()
	Attempts to stop a started producer.
void	close ()
void	setStateChangedCallback (StateChangedCallback c)

Protected Member Functions
virtual void	openImpl ()
virtual void	runImpl ()
virtual void	startImpl ()
virtual void	pauseImpl ()
virtual void	resumeImpl ()
virtual void	stopImpl ()
virtual void	closeImpl ()
void	setState (State s)
void	dispatchBuffer (Buffer buffer, bool last)
template<typename T>
void	dispatchAudio (T &&data, int sampleRate, int channelCount, bool isLast)

Detailed Description

Base class for Pipeline modules that aquire and dispatch audio buffers (like Producer::File)

Member Typedef Documentation

StateChangedCallback

using Vsdk::Audio::ProducerModule::StateChangedCallback = std::function<void(State)>

Iterator

using Vsdk::Audio::ProducerModule::Iterator = Vsdk::Utils::Iterator<decltype(_subscribers)>

Iterator pointing to a subscriber of this producer.

Member Enumeration Documentation

State

enum class Vsdk::Audio::ProducerModule::State

strong

Enumerator
Closed	Ready to be open()-ed.
Opened	Ready to call run() or start()
Running	Inside of run()
Started	start() (or resume()) has been called and work is in progress
Paused	pause() has been called
Idle	Either stop() has been called or audio production is over, new work can be launched.

Constructor & Destructor Documentation

ProducerModule() [1/3]

ProducerModule::ProducerModule

(

)

ProducerModule() [2/3]

ProducerModule::ProducerModule

(

ProducerModule &&

other

)

~ProducerModule()

ProducerModule::~ProducerModule ( )

pure virtual

ProducerModule() [3/3]

Vsdk::Audio::ProducerModule::ProducerModule ( ProducerModule const & )

delete

Member Function Documentation

operator=() [1/2]

ProducerModule & ProducerModule::operator=

(

ProducerModule &&

other

)

operator=() [2/2]

ProducerModule & Vsdk::Audio::ProducerModule::operator= ( ProducerModule const & )

delete

subscribeFirst()

auto ProducerModule::subscribeFirst

(

AudioCallback

c

)

-> Iterator

Subscribes as first in the list of audio buffer receivers for this producer.

subscribeLast()

auto ProducerModule::subscribeLast

(

AudioCallback

c

)

-> Iterator

Subscribes as last in the list of audio buffer receivers for this producer.

unsubscribe()

void ProducerModule::unsubscribe ( Iterator it )

noexcept

Unsubscribes from this producer audio buffer dispatch list.

state()

auto ProducerModule::state

(

)

const -> State

isOpened()

bool ProducerModule::isOpened

(

)

const

isRunning()

bool ProducerModule::isRunning

(

)

const

isStarted()

bool ProducerModule::isStarted

(

)

const

isPaused()

bool ProducerModule::isPaused

(

)

const

isIdle()

bool ProducerModule::isIdle

(

)

const

isClosed()

bool ProducerModule::isClosed

(

)

const

open()

void ProducerModule::open

(

)

Attempts to open the underlying resource(s) of the producer.

Note

• Blocking call

Postcondition

state() == State::Opened

Exceptions

Vsdk::Exception

if error occurs

run()

void ProducerModule::run

(

)

Note

• Blocking call, no asynchronous work should be performed

Warning

Do not override if you do not support synchronous operations!

Precondition

state() == State::Opened

Postcondition

state() == State::Opened

Exceptions

Vsdk::Exception

if error occurs

start()

void ProducerModule::start

(

)

Note

• Non-blocking call: producer might not be started right after this

Warning

Do not override if you do not support async operations!

Precondition

state() == State::Opened

Exceptions

Vsdk::Exception

if error occurs

pause()

void ProducerModule::pause

(

)

Attempts to pause a started producer.

Note

• Non-blocking call: producer might not be paused right after this

Warning

Do not override if you do not support pausing!

Exceptions

Vsdk::Exception

if error occurs

resume()

void ProducerModule::resume

(

)

Attempts to resume a paused producer.

Note

• Non-blocking call: producer might not be resumed right after this

Warning

Do not override if you do not support resuming!

Exceptions

Vsdk::Exception

if error occurs

stop()

void ProducerModule::stop

(

)

Attempts to stop a started producer.

Note

• Non-blocking call: producer state might not be Idle after this

Warning

Do not override if you do not support async operations!

Exceptions

Vsdk::Exception

if error occurs

close()

void ProducerModule::close

(

)

Note

• Blocking call: producer should wait for proper closing

Warning

• Attempting to close a running producer will fail
• Attempting to close a started producer will first try to close it

Postcondition

state() == State::Closed

Exceptions

Vsdk::Exception

if error occurs

openImpl()

void ProducerModule::openImpl ( )

protectedvirtual

Reimplemented in Vsdk::Audio::BufferModule, and Vsdk::Audio::Producer::File.

runImpl()

void ProducerModule::runImpl ( )

protectedvirtual

Reimplemented in Vsdk::Audio::BufferModule, Vsdk::Audio::Producer::File, and Vsdk::Tts::Channel.

startImpl()

void ProducerModule::startImpl ( )

protectedvirtual

Reimplemented in Vsdk::Audio::BufferModule, Vsdk::Audio::Producer::BufferForwarder, Vsdk::Audio::Producer::BufferStreamer, Vsdk::Audio::Producer::File, and Vsdk::Tts::Channel.

pauseImpl()

void ProducerModule::pauseImpl ( )

protectedvirtual

resumeImpl()

void ProducerModule::resumeImpl ( )

protectedvirtual

stopImpl()

void ProducerModule::stopImpl ( )

protectedvirtual

Reimplemented in Vsdk::Audio::BufferModule, Vsdk::Audio::Producer::BufferForwarder, Vsdk::Audio::Producer::BufferStreamer, and Vsdk::Audio::Producer::File.

closeImpl()

void ProducerModule::closeImpl ( )

protectedvirtual

Reimplemented in Vsdk::Audio::BufferModule, and Vsdk::Audio::Producer::File.

setStateChangedCallback()

void ProducerModule::setStateChangedCallback

(

StateChangedCallback

c

)

setState()

void ProducerModule::setState ( State s )

protected

dispatchBuffer()

void ProducerModule::dispatchBuffer ( Buffer buffer, bool last )

protected

dispatchAudio()

template<typename T>

void Vsdk::Audio::ProducerModule::dispatchAudio ( T && data, int sampleRate, int channelCount, bool isLast )

protected
