Vsdk::Audio::BufferModule

#include <BufferModule.hpp>

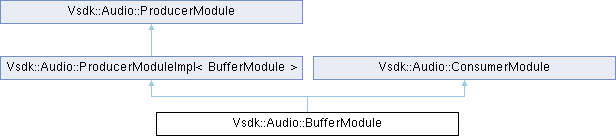

Inheritance diagram for Vsdk::Audio::BufferModule:

Public Member Functions
	BufferModule () noexcept
	Constructs a BufferModule with a fireRate of zero.
	~BufferModule () override
	BufferModule (size_t fireRate) noexcept
	Constructs a BufferModule with a fireRate of fireRate.
auto	buffer () -> Buffer &
auto	buffer () const -> Buffer const &
auto	fireRate () const -> size_t
void	setFireRate (size_t fireRate)
Public Member Functions inherited from Vsdk::Audio::ProducerModuleImpl< BufferModule >
	ProducerModuleImpl ()=default
Public Member Functions inherited from Vsdk::Audio::ProducerModule
	ProducerModule ()
	ProducerModule (ProducerModule &&)
ProducerModule &	operator= (ProducerModule &&)
virtual	~ProducerModule ()=0
	ProducerModule (ProducerModule const &)=delete
ProducerModule &	operator= (ProducerModule const &)=delete
auto	subscribeFirst (AudioCallback c) -> Iterator
	Subscribes as first in the list of audio buffer receivers for this producer.
auto	subscribeLast (AudioCallback c) -> Iterator
	Subscribes as last in the list of audio buffer receivers for this producer.
void	unsubscribe (Iterator it) noexcept
	Unsubscribes from this producer audio buffer dispatch list.
auto	state () const -> State
bool	isOpened () const
bool	isRunning () const
bool	isStarted () const
bool	isPaused () const
bool	isIdle () const
bool	isClosed () const
void	open ()
	Attempts to open the underlying resource(s) of the producer.
void	run ()
void	start ()
void	pause ()
	Attempts to pause a started producer.
void	resume ()
	Attempts to resume a paused producer.
void	stop ()
	Attempts to stop a started producer.
void	close ()
void	setStateChangedCallback (StateChangedCallback c)
Public Member Functions inherited from Vsdk::Audio::ConsumerModule
virtual	~ConsumerModule ()=default

Protected Member Functions
void	openImpl () override
void	runImpl () override
void	startImpl () override
void	stopImpl () override
void	closeImpl () override
Protected Member Functions inherited from Vsdk::Audio::ProducerModule
virtual void	pauseImpl ()
virtual void	resumeImpl ()
void	setState (State s)
void	dispatchBuffer (Buffer buffer, bool last)
template<typename T>
void	dispatchAudio (T &&data, int sampleRate, int channelCount, bool isLast)

Additional Inherited Members
Public Types inherited from Vsdk::Audio::ProducerModule
enum class	State {   Closed , Opened , Running , Started ,   Paused , Idle }
using	StateChangedCallback = std::function<void(State)>
using	Iterator = Vsdk::Utils::Iterator<decltype(_subscribers)>
	Iterator pointing to a subscriber of this producer.
Static Public Member Functions inherited from Vsdk::Audio::ProducerModuleImpl< BufferModule >
static auto	make (Args &&... args) -> std::shared_ptr< BufferModule >

Constructor & Destructor Documentation

BufferModule() [1/2]

BufferModule::BufferModule ( )

noexcept

Constructs a BufferModule with a fireRate of zero.

~BufferModule()

BufferModule::~BufferModule ( )

override

BufferModule() [2/2]

BufferModule::BufferModule ( size_t fireRate )

explicitnoexcept

Constructs a BufferModule with a fireRate of fireRate.

Member Function Documentation

buffer() [1/2]

auto Vsdk::Audio::BufferModule::buffer

(

)

-> Buffer &

buffer() [2/2]

auto Vsdk::Audio::BufferModule::buffer

(

)

const -> Buffer const &

fireRate()

auto Vsdk::Audio::BufferModule::fireRate

(

)

const -> size_t

setFireRate()

void Vsdk::Audio::BufferModule::setFireRate

(

size_t

fireRate

)

openImpl()

void BufferModule::openImpl ( )

overrideprotectedvirtual

Reimplemented from Vsdk::Audio::ProducerModule.

runImpl()

void BufferModule::runImpl ( )

overrideprotectedvirtual

Reimplemented from Vsdk::Audio::ProducerModule.

startImpl()

void BufferModule::startImpl ( )

overrideprotectedvirtual

Reimplemented from Vsdk::Audio::ProducerModule.

stopImpl()

void BufferModule::stopImpl ( )

overrideprotectedvirtual

Reimplemented from Vsdk::Audio::ProducerModule.

closeImpl()

void BufferModule::closeImpl ( )

overrideprotectedvirtual

Reimplemented from Vsdk::Audio::ProducerModule.
